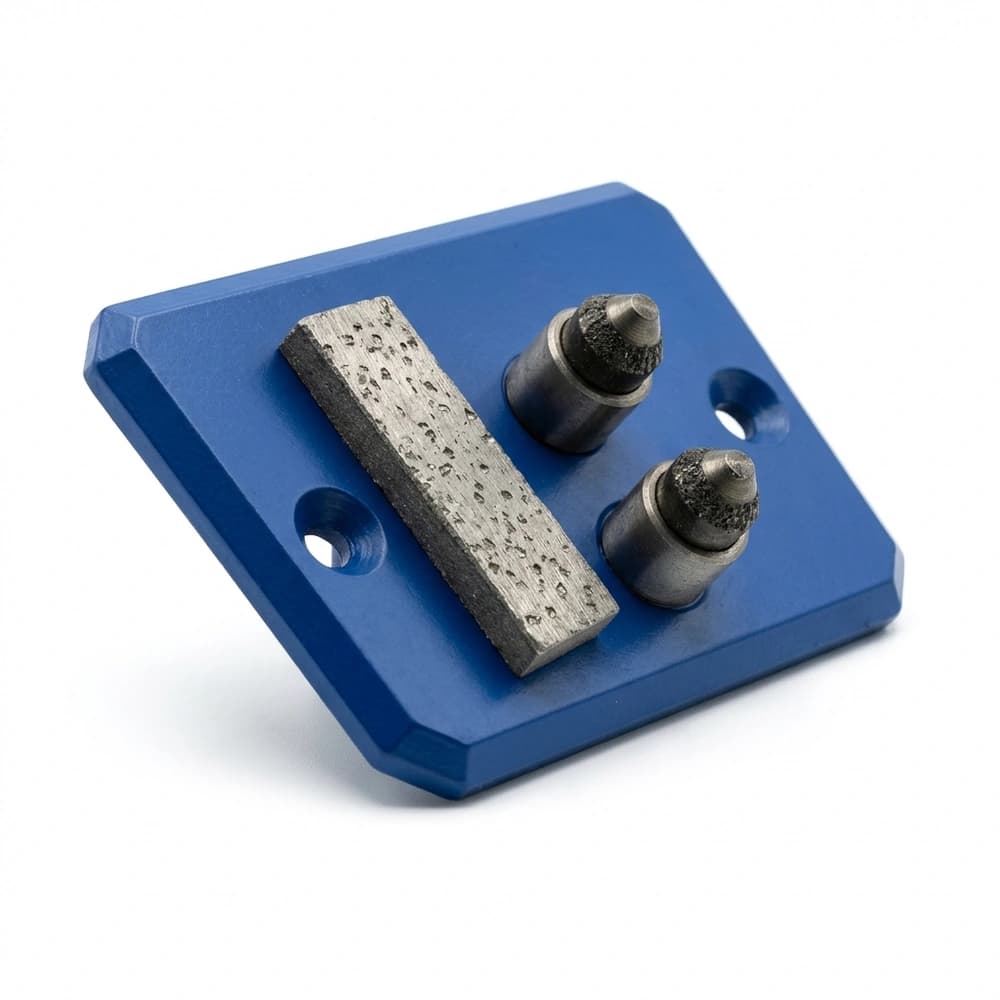

PCD (Polycrystalline Diamond) Thick Epoxy & Coating Removal Floor Scraper Shoe
SKU: NT-DGP-105
Est. 1998 · Unit 9F-H, East Building, Haijing Center, NO.144(M) Huangpu AVE, Guangzhou, China
Heavy-duty PCD scraper shoe with sacrificial carbide wear segments, stripping thick epoxy (2–5mm), elastomeric mastic, self-leveling mortar, and glue without gumming.
| Model | Diameter | Segment (T×H) | Bore / Arbor |
|---|---|---|---|
| NT-DGP-105-105 | 105mm (4") | 1.8×7mm (0.071" × 9/32") / 2.0×10mm (5/64" × 3/8") | 20mm (3/4") / 16mm (5/8") |
| NT-DGP-105-115 | 115mm (4.5") | 2.0×10mm (5/64" × 3/8") | 22.23mm (7/8") |
| NT-DGP-105-125 | 125mm (5") | 2.2×10mm (0.087" × 3/8") | 22.23mm (7/8") |
| NT-DGP-105-180 | 180mm (7") | 2.4×10mm (3/32" × 3/8") | 22.23mm (7/8") |
| NT-DGP-105-230 | 230mm (9") | 2.6×12mm (0.1" × 1/2") | 22.23mm (7/8") |
| NT-DGP-105-350 | 350mm (14") | 3.2×10mm (1/8" × 3/8") | 25.4mm (1") / 20mm (3/4") |
Select individual or multiple dimensional models below to append directly to your B2B RFQ requisition.
| Model | Diameter | Segment (T×H) | Bore / Arbor | RFQ Requisition | |
|---|---|---|---|---|---|
| NT-DGP-105-105 | 105mm (4") | 1.8×7mm (0.071" × 9/32") / 2.0×10mm (5/64" × 3/8") | 20mm (3/4") / 16mm (5/8") | ||
| NT-DGP-105-115 | 115mm (4.5") | 2.0×10mm (5/64" × 3/8") | 22.23mm (7/8") | ||
| NT-DGP-105-125 | 125mm (5") | 2.2×10mm (0.087" × 3/8") | 22.23mm (7/8") | ||
| NT-DGP-105-180 | 180mm (7") | 2.4×10mm (3/32" × 3/8") | 22.23mm (7/8") | ||
| NT-DGP-105-230 | 230mm (9") | 2.6×12mm (0.1" × 1/2") | 22.23mm (7/8") | ||
| NT-DGP-105-350 | 350mm (14") | 3.2×10mm (1/8" × 3/8") | 25.4mm (1") / 20mm (3/4") |
Heavy-duty PCD scraper shoe with sacrificial carbide wear segments, stripping thick epoxy (2–5mm), elastomeric mastic, self-leveling mortar, and glue without gumming.
Manufacturing processes and technical parameters are tailored according to customer requirements. Tell us your target material, dimensions, drawings, and order quantity, and we configure the construction, bond/alloy grade, and finishing to match.
We support flexible FOB and CIF delivery at any port in China (including Guangzhou, Shenzhen, Ningbo, Shanghai, Qingdao, Tianjin, and Xiamen) with 100% pre-shipment inspection before dispatch.
Yes. Custom laser marking, color finishes, private-label retail or industrial packaging, and barcode labeling are agreed with you before production.
