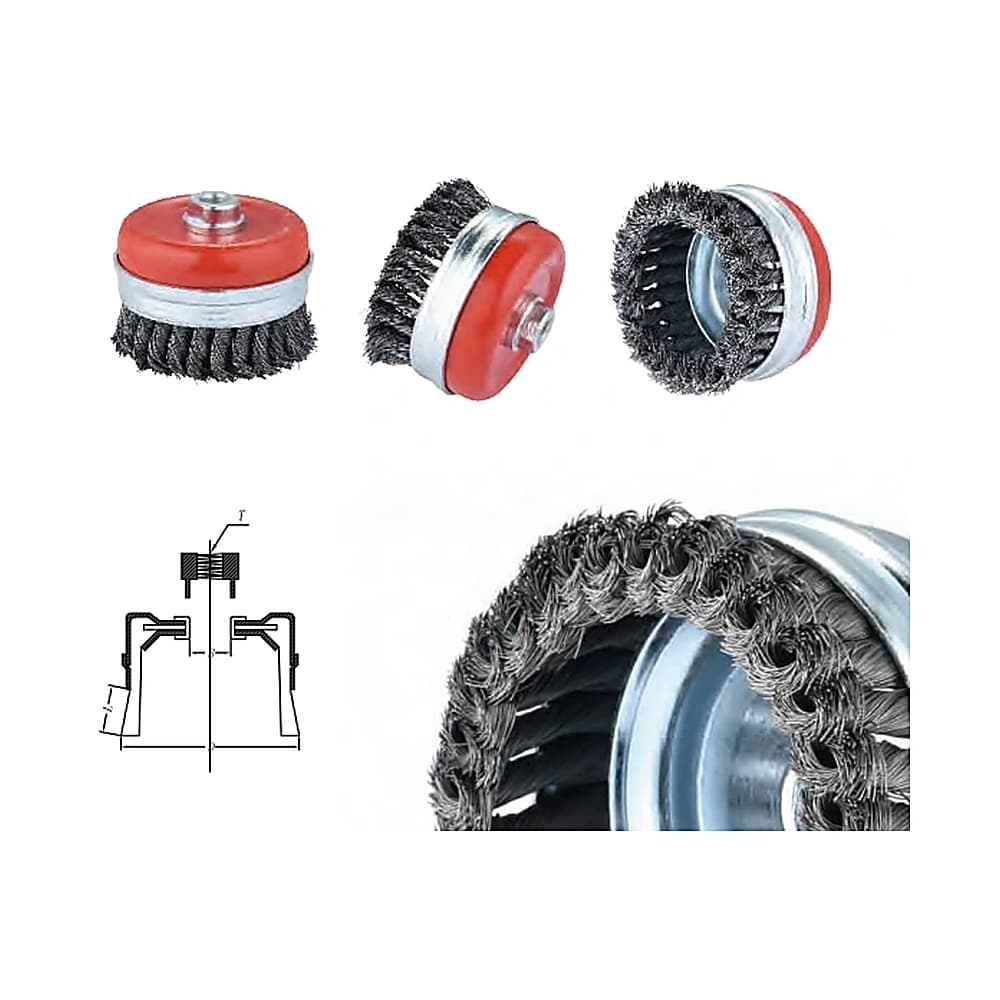

Heavy-Duty Knotted Wire Cup Brush with Removable Bridle (Restraining Ring)
SKU: NT-WBR-103
Est. 1998 · Unit 9F-H, East Building, Haijing Center, NO.144(M) Huangpu AVE, Guangzhou, China
Extended-life knotted wire cup brush equipped with a metal bridle band that controls wire flare; remove the bridle ring once wire wears down to expose a fresh cutting zone.
| Feature | Removable Metal Bridle (Restraining Ring) |
|---|---|
| Wire Diameter | 0.50mm (0.02") High Carbon Steel |
| Thread Mount | M14x2.0 / 5/8"-11 UNC |
| Diameter Range | 75mm (3") – 125mm (3" – 5") |
| size | model | thread |
|---|---|---|
| 75mm (3") with Bridle | NT-WBR-103-075 | M14x2 |
| 100mm (4") with Bridle | NT-WBR-103-100 | M14x2 / 5/8"-11 |
| 125mm (5") with Bridle | NT-WBR-103-125 | 5/8"-11 |
Shipbuilding plate seam prep, weld spatter removal, and root weld descaling, Pipeline construction, bridge girder fabrication, and heavy mining repairs, Extreme rust descaling and thick asphalt/rubber mastic stripping
Process-by-requirement custom OEM/ODM manufacturing confirmed against buyer drawings prior to production.
Select individual or multiple dimensional models below to append directly to your B2B RFQ requisition.
| size | model | thread | RFQ Requisition | |
|---|---|---|---|---|
| 75mm (3") with Bridle | NT-WBR-103-075 | M14x2 | ||
| 100mm (4") with Bridle | NT-WBR-103-100 | M14x2 / 5/8"-11 | ||
| 125mm (5") with Bridle | NT-WBR-103-125 | 5/8"-11 |
Shipbuilding plate seam prep, weld spatter removal, and root weld descaling, Pipeline construction, bridge girder fabrication, and heavy mining repairs, Extreme rust descaling and thick asphalt/rubber mastic stripping
Extended-life knotted wire cup brush equipped with a metal bridle band that controls wire flare; remove the bridle ring once wire wears down to expose a fresh cutting zone.
Manufacturing processes and technical parameters are tailored according to customer requirements. Tell us your target material, dimensions, drawings, and order quantity, and we configure the construction, bond/alloy grade, and finishing to match.
We support flexible FOB and CIF delivery at any port in China (including Guangzhou, Shenzhen, Ningbo, Shanghai, Qingdao, Tianjin, and Xiamen) with 100% pre-shipment inspection before dispatch.
Yes. Custom laser marking, color finishes, private-label retail or industrial packaging, and barcode labeling are agreed with you before production.
