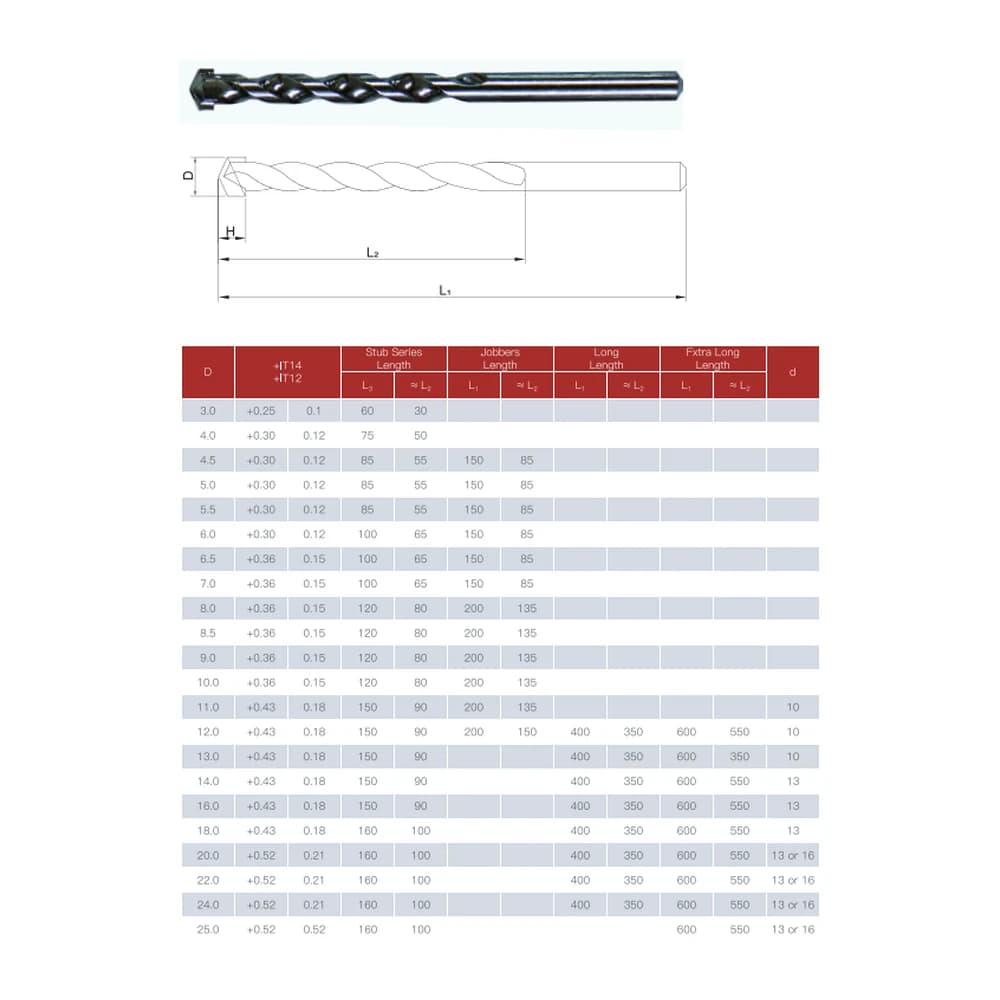

DIN 8039 Tungsten Carbide Tipped (TCT) Masonry & Concrete Impact Drill Bit
SKU: NT-DRL-115
Est. 1998 · Unit 9F-H, East Building, Haijing Center, NO.144(M) Huangpu AVE, Guangzhou, China
Heavy-duty DIN 8039 masonry drill bit with copper-brazed YG8C tungsten carbide tip, designed for percussion impact drilling in brickwork, concrete block, and stone.
| Standard | DIN 8039 / ISO 5468 |
|---|---|
| Tip Material | YG8C Tungsten Carbide Tip |
| Body Material | 40Cr Chrome Alloy Steel Body |
| Brazing Method | High-Temperature Copper Brazing (>1100°C) |
| Diameter Range | 3.0mm (1/8") – 25.0mm (1/8" – 1") |
| size | model | shank | length |
|---|---|---|---|
| 5.0mm (3/16") | NT-DRL-115-050 | Round | 85mm (3-3/8") |
| 6.0mm (15/64") | NT-DRL-115-060 | Round | 100mm (4") |
| 8.0mm (5/16") | NT-DRL-115-080 | Round | 120mm (4-3/4") |
| 10.0mm (25/64") | NT-DRL-115-100 | Round | 150mm (6") |
| 12.0mm (15/32") | NT-DRL-115-120 | Round | 150mm (6") |
Brick walls, hollow clay tiles, and aerated concrete blocks, Lightweight stone, mortar, plaster, and screed drilling, Anchor bolt, plastic wall plug, and conduit clip installations
Process-by-requirement custom OEM/ODM manufacturing confirmed against buyer drawings prior to production.
Select individual or multiple dimensional models below to append directly to your B2B RFQ requisition.
| size | model | shank | length | RFQ Requisition | |
|---|---|---|---|---|---|
| 5.0mm (3/16") | NT-DRL-115-050 | Round | 85mm (3-3/8") | ||
| 6.0mm (15/64") | NT-DRL-115-060 | Round | 100mm (4") | ||
| 8.0mm (5/16") | NT-DRL-115-080 | Round | 120mm (4-3/4") | ||
| 10.0mm (25/64") | NT-DRL-115-100 | Round | 150mm (6") | ||
| 12.0mm (15/32") | NT-DRL-115-120 | Round | 150mm (6") |
Brick walls, hollow clay tiles, and aerated concrete blocks, Lightweight stone, mortar, plaster, and screed drilling, Anchor bolt, plastic wall plug, and conduit clip installations
Heavy-duty DIN 8039 masonry drill bit with copper-brazed YG8C tungsten carbide tip, designed for percussion impact drilling in brickwork, concrete block, and stone.
Manufacturing processes and technical parameters are tailored according to customer requirements. Tell us your target material, dimensions, drawings, and order quantity, and we configure the construction, bond/alloy grade, and finishing to match.
We support flexible FOB and CIF delivery at any port in China (including Guangzhou, Shenzhen, Ningbo, Shanghai, Qingdao, Tianjin, and Xiamen) with 100% pre-shipment inspection before dispatch.
Yes. Custom laser marking, color finishes, private-label retail or industrial packaging, and barcode labeling are agreed with you before production.
