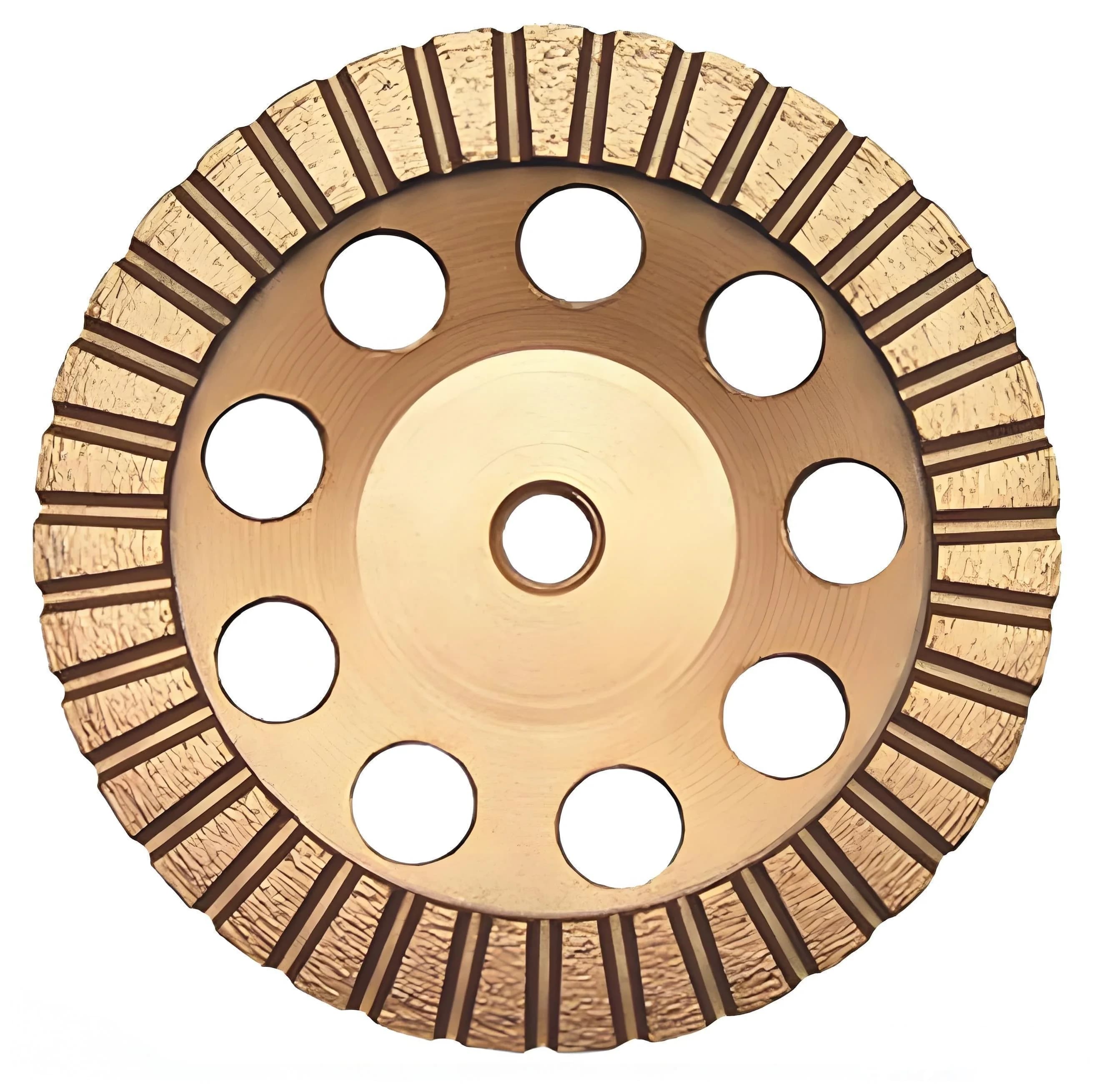

Continuous Ladder Segmented Grinding Cup Wheel
SKU: NT-DGW-107
Est. 1998 · Unit 9F-H, East Building, Haijing Center, NO.144(M) Huangpu AVE, Guangzhou, China
Heavy-duty continuous ladder segmented grinding cup wheel designed for rapid concrete stock removal, surface leveling, coating stripping, and masonry edge profiling. Supplied in 100mm–180mm (4"–7") sizes with 22.23mm (7/8") or 5/8"-11 threaded arbors.
| Compatible Equipment | Handheld Angle Grinders, Concrete Floor Grinders, Planetary Walk-Behind Grinders |
|---|---|
| Diamond Grit Options | #16/20 (Coarse), #30/40 (Medium), #60/80 (Fine), #120 (Polishing) |
| Arbor / Thread Options | 22.23mm (7/8") Non-Threaded, M14 Threaded, 5/8"-11 UNC Threaded |
| Working Segment Height | 5mm (0.2") / 6mm (1/4") / 8mm (5/16") |
| Diameter Range (Metric / Imperial) | 100mm (4"), 115mm (4.5"), 125mm (5"), 150mm (6"), 180mm (7") |
| bore | size | model | segment |
|---|---|---|---|
| 22.23mm (7/8") or 5/8"-11 | 100mm (4") | NT-DGW-107-100 | 5.5mm (0.22") Height / #30/40 |
| 22.23mm (7/8") or 5/8"-11 | 115mm (4.5") | NT-DGW-107-115 | 5.5mm (0.22") Height / #30/40 |
| 22.23mm (7/8") or M14 | 125mm (5") | NT-DGW-107-125 | 6.0mm (1/4") Height / #30/40 |
| 22.23mm (7/8") or 5/8"-11 | 180mm (7") | NT-DGW-107-180 | 6.0mm (1/4") Height / #30/40 |
Concrete floor leveling, high-spot grinding, and form-mark removal, Epoxy, urethane, thinset mortar, and elastomeric waterproof coating removal, Granite, marble, and architectural precast stone surface smoothing, Industrial warehouse floor prep prior to polishing or self-leveling overlay
Process-by-requirement custom OEM/ODM manufacturing confirmed against buyer drawings prior to production.
Select individual or multiple dimensional models below to append directly to your B2B RFQ requisition.
| bore | size | model | segment | RFQ Requisition | |
|---|---|---|---|---|---|
| 22.23mm (7/8") or 5/8"-11 | 100mm (4") | NT-DGW-107-100 | 5.5mm (0.22") Height / #30/40 | ||
| 22.23mm (7/8") or 5/8"-11 | 115mm (4.5") | NT-DGW-107-115 | 5.5mm (0.22") Height / #30/40 | ||
| 22.23mm (7/8") or M14 | 125mm (5") | NT-DGW-107-125 | 6.0mm (1/4") Height / #30/40 | ||
| 22.23mm (7/8") or 5/8"-11 | 180mm (7") | NT-DGW-107-180 | 6.0mm (1/4") Height / #30/40 |
Concrete floor leveling, high-spot grinding, and form-mark removal, Epoxy, urethane, thinset mortar, and elastomeric waterproof coating removal, Granite, marble, and architectural precast stone surface smoothing, Industrial warehouse floor prep prior to polishing or self-leveling overlay
Heavy-duty continuous ladder segmented grinding cup wheel designed for rapid concrete stock removal, surface leveling, coating stripping, and masonry edge profiling. Supplied in 100mm–180mm (4"–7") sizes with 22.23mm (7/8") or 5/8"-11 threaded arbors.
Manufacturing processes and technical parameters are tailored according to customer requirements. Tell us your target material, dimensions, drawings, and order quantity, and we configure the construction, bond/alloy grade, and finishing to match.
We support flexible FOB and CIF delivery at any port in China (including Guangzhou, Shenzhen, Ningbo, Shanghai, Qingdao, Tianjin, and Xiamen) with 100% pre-shipment inspection before dispatch.
Yes. Custom laser marking, color finishes, private-label retail or industrial packaging, and barcode labeling are agreed with you before production.
